BF24-2 - Belimo

Belimo 24V Spring Return Actuator with Shaft Going Through

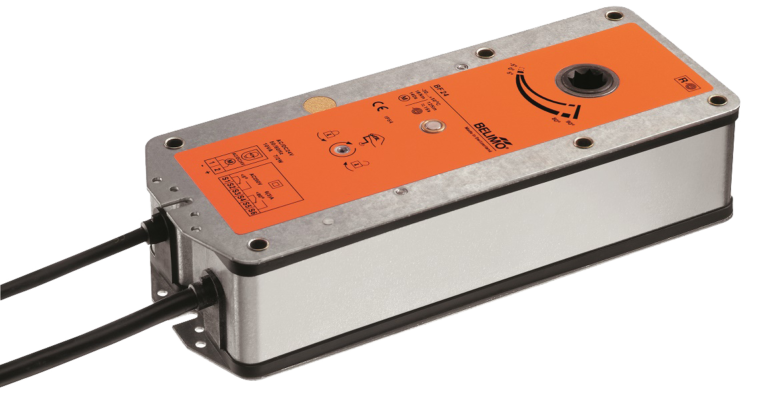

Belimo BF24

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator for fire and smoke dampers 90˚ in ventilation and air-conditioning systems which allows the damper shaft to fit straight through

Technical specifications

  • Spring-return actuator, 18 Nm, < 120 s, 95˚(incl. 5˚ spring-return)
  • AC/DC 24 V Open/Close 2 x SPDT, IP 54
  • Manual override with integrated position stop
  • Torque spring 12 Nm, Running time spring approx. 16s
  • Connection halogen-free cable
  • Auxiliary switch 2 integral
  • Spindle driver form-fit 12 x 12mm shaft (10 x 10 mm with adapter)
  • Direction of rotation reversible (right/left)

Useful downloads

BF24-2 PRODUCT DATASHEETS

BF24 Technical Data Sheet

Download (PDF 247.47 KB) ↓

Fire damper actuators

Download (PDF 796.33 KB) ↓

Related products

Speak to a specialist in Belimo retrofit Fire & Smoke products today

As the UK's only partner for Belimo retrofit Fire & Smoke actuators, MHS is the place to order your replacement Fire & Smoke actuators today. Deal direct with MHS, and benefit from the added expert technical support we give all our customers when buying these life safety products.
