BFG230-T - Belimo

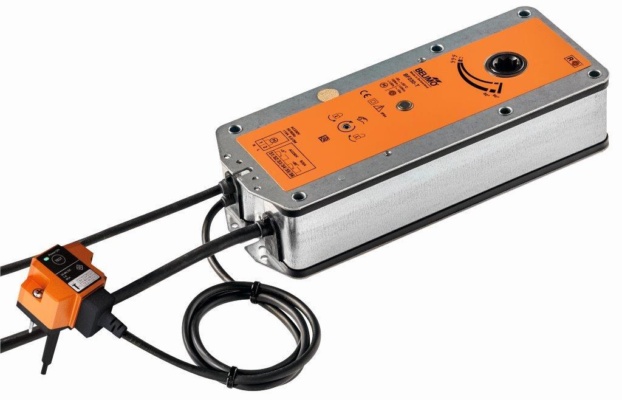

Belimo 230V Spring Return Actuator 180 Degree Rotation with Thermal Fuse 11Nm

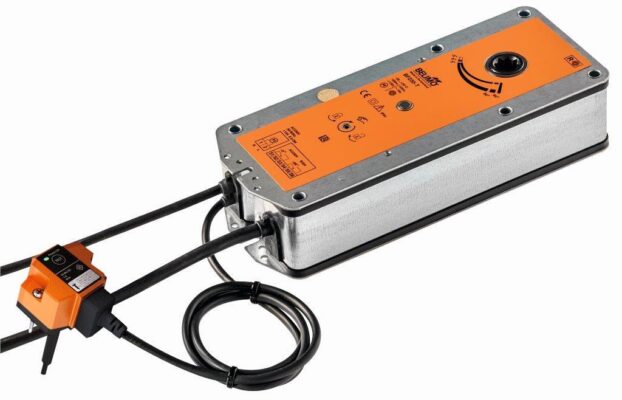

Belimo BF230-T

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator, combined with thermoelectric tripping device (72˚C), for fire and smoke dampers 180˚ in ventilation and air-conditioning systems.

Technical specifications

  • Spring-return actuator
  • 11 Nm, 140 s, 180˚, AC 230 V
  • Open/Close, 2 x SPDT, IP 54, Manual override with integrated position stop
  • Torque spring 8,5 Nm, Running time spring approx. 20 s
  • Connection halogen-free cable
  • Auxiliary switch 2 integral, potential-free, 25˚, 145˚
  • Spindle driver form-fit 10 x 10 mm
  • Combined with thermoelectr. tripping device
  • BAE72-S (72˚ C)
  • Direction of rotation reversible (right/left)

Useful downloads

BFG230-T PRODUCT DATASHEET

BFG230-T Technical Data Sheet

Download (PDF 268.87 KB) ↓

Fire damper actuators

Download (PDF 796.33 KB) ↓
