BFN24-T-ST - Belimo

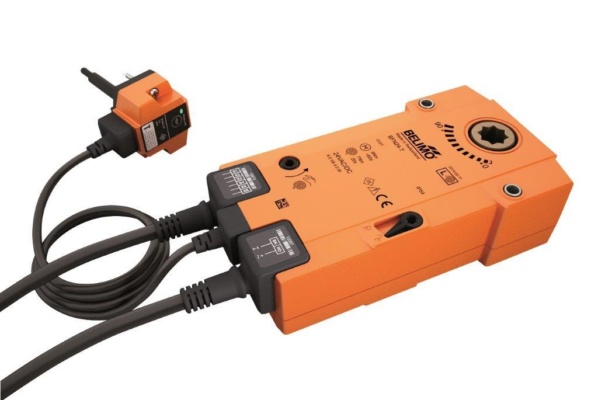

Belimo 24V Spring Return Actuator With Thermal Fuse 9Nm and plug

Belimo BFN24 T

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator, combined with thermoelectric tripping device BAT (72°C), for fire and smoke dampers 90° in ventilation and air-conditioning systems, with connection plugs for simple integration in control and monitoring systems or bus networks via communication and power supply units

Technical specifications

  • Spring-return actuator 90˚
  • 9 Nm/7 Nm, <60 s/20 s (motor/spring).
  • AC 24 V, open-close
  • cable 1 m
  • Thermoelectrical tripping device BAT (72˚ C)
  • Form fit 12x12 mm
  • continuous hollow shaft
  • Auxiliary switch 2 x SPDT (5˚ / 80˚)
  • Manual override with position stop
  • IP54 in all mounting positions, direction of rotation can be selected by mounting L/R
  • Incl. hand crank pointer & protective bag

Useful downloads

BFN24-T-ST PRODUCT DATASHEETS

Bfn24 T St Datasheet

Download (PDF 499.65 KB) ↓
